iLLUSiO
iLLUSiO integrates as a transparent layer within the space, designed for environments shaped by light, depth and movement. Visually present yet physically discreet, it preserves openness and sightlines, allowing architecture, merchandise and people to remain visible as content appears naturally within the environment, never closing the space.
Transparency that lives naturally within architecture
At Pixals, every project begins with space, proportion and materiality. iLLUSiO is not a screen installed onto a surface, it is a visual system designed to operate as one with the structure, finishes and spatial flow around it. With over 90% transparency, its slim LED bar structure lets natural light, depth and movement pass through freely, so visuals integrate into the environment rather than dominate it.

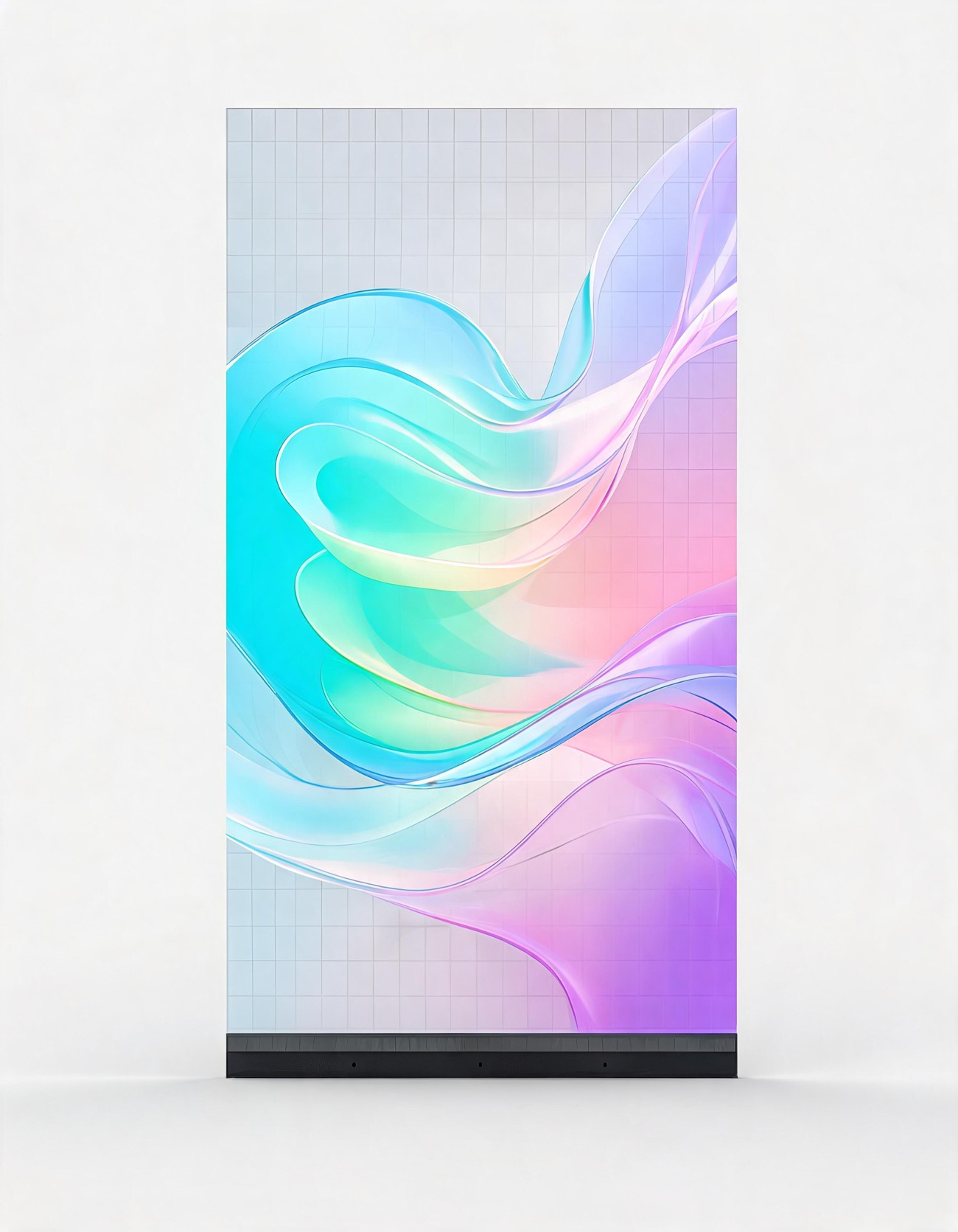

Slim LED bars, a narrow frame and minimal non-display structure give iLLUSiO an open appearance of up to 90% transparency, while a screw-free PDU and edge-concealed hub boards keep every exterior line clean. The result reads as a pane of moving light, not a piece of hardware.
An open appearance up to 90% transparency through slim LED bars, a narrow frame and minimal non-display structure. The surface stays bright and unobstructed, even when content is active.
Crisp visuals across varied lighting at 4000 nits. Smooth motion, 16-bit grayscale and balanced contrast keep content clear without overpowering the space.
Ultra-slim profile with hub boards concealed along the display edge and a screw-free PDU for clean exterior lines and no heavy framing.
Mounts directly onto glass, integrates into hanging systems and pairs with mobile stands. A dual-fixation design lets modules detach and refit cleanly without stressing the surface.
Maintains surface flatness within 0.1mm, resisting the waves and front-to-back movement common in suspended transparent LED. Smooth and unified over time.
Redundant data paths and breakpoint continuation keep content running if a route fails. Individual panels replace without disturbing adjacent modules.
Designed for environments that stay open

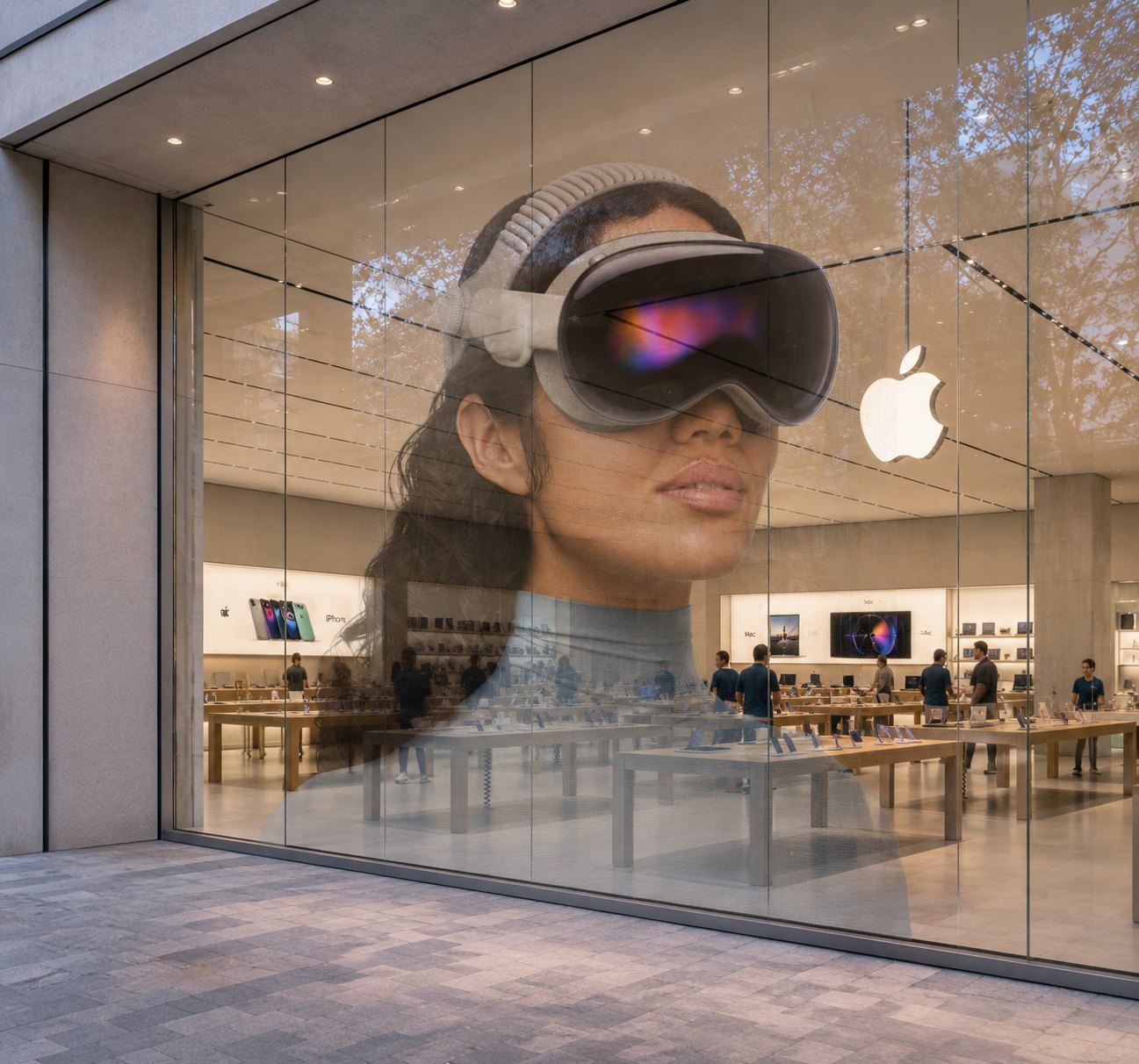

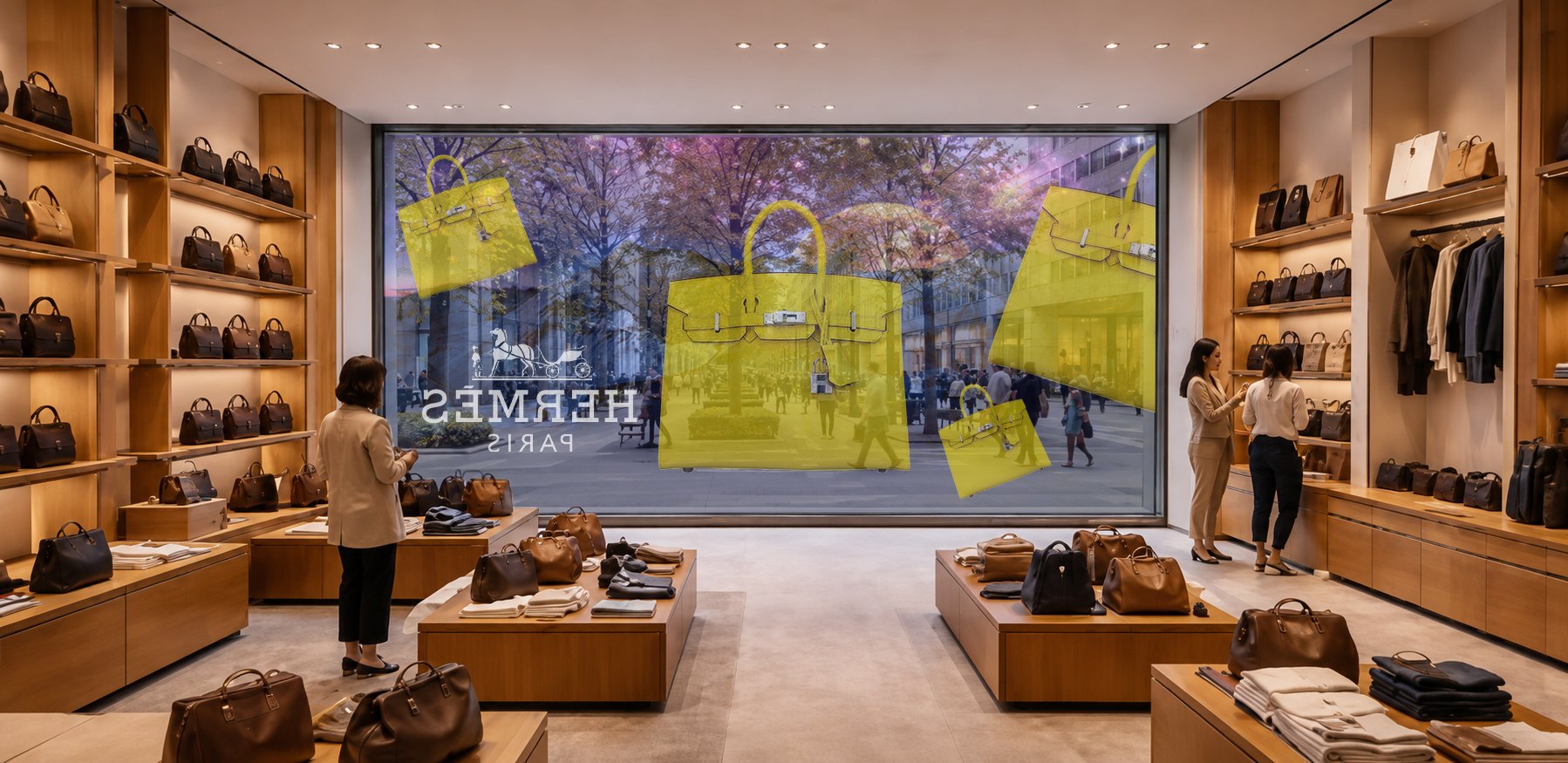

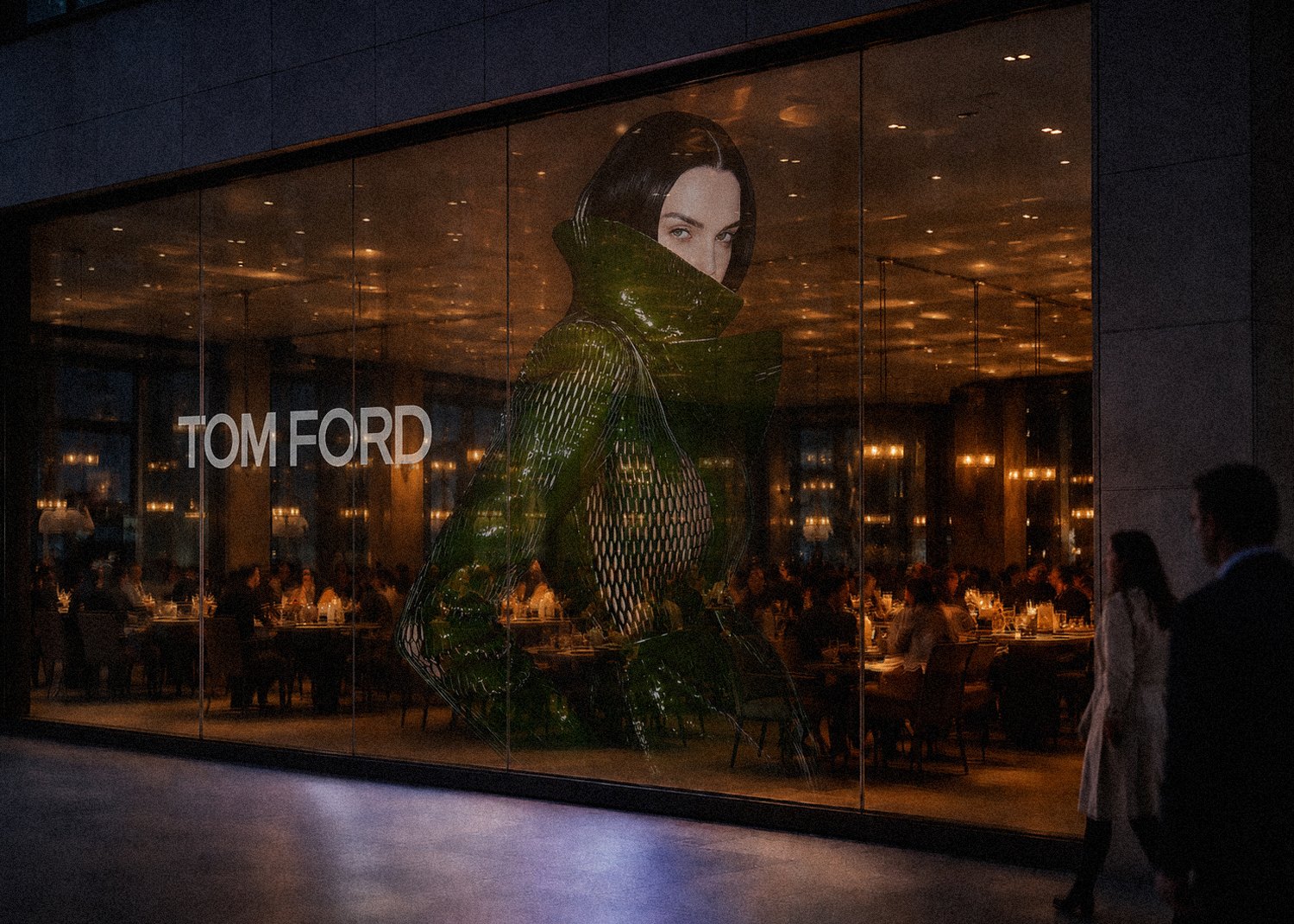

iLLUSiO brings motion content to shopfronts without obscuring products or blocking daylight. Content appears within the glass, keeping interiors visible, open and inviting from the street.
Integrated into glass walls and open-plan environments, iLLUSiO communicates brand identity and information while preserving openness and respecting architectural intent.
Lightweight and adaptable, iLLUSiO enables flexible temporary installations. Layouts can be adjusted or displays relocated without additional hardware or structural changes.
A transparent visual layer that enhances scenography while preserving depth and movement, delivering a bright yet unobtrusive presence in hanging stage and scenic installations.
Adaptable to glass, hanging and mobile structures
Large-format, lightweight panels allow fast, controlled deployment with minimal disruption to the surrounding environment. The 1000 × 1550mm cabinet, built from 8 modules at 4.5kg, moves easily through any site, with balanced rigidity that lets teams lift, place and align with confidence.
- Dual-fixation design combines clip backing with micro-adhesive points for repeatable bonding strength.
- Panels detach and refit cleanly without stressing the mounting surface.
- Hub boards mount directly along the edge, no additional framing required.
- Integrates cleanly into hanging systems for open environments and atriums.
- Maintains flatness within 0.1mm, resisting waves and front-to-back movement.
- Modules reposition without stressing the structure, keeping changes low-risk.
- Pairs naturally with mobile stands for pop-ups and activations.
- Free-cutting design allows flexible splicing to match creative shapes and site requirements.
- Relocate displays without additional hardware or structural changes.
Pixals iLLUSiO · 5.95mm Transparent
- Pixel Pitch
- 5.95mm
- Transparency
- 90%
- Physical Density
- 28,224 px/m²
- LED Arrangement
- SMD2222
- Brightness
- 4,000 nits
- Contrast Ratio
- 10,000:1
- Grayscale
- 16-bit
- Viewing Angle
- 160° / 160°
- Refresh Rate
- 7,680Hz
- Module
- 125 × 1500mm
4.92 × 59.06in - Module Res.
- 21 × 252px
- Cabinet
- 1000 × 1550 × 34mm
39.37 × 61.02 × 1.34in - Cabinet Res.
- 168 × 252px
- Cabinet Weight
- 4.5kg (9.92lb)
- Modules / Cabinet
- 8
- Flatness
- ± 0.1mm
- Max Power
- 1,600W / cabinet
- Avg Power
- 470W / cabinet
- Power Source
- 100–240V AC, 50/60Hz
- Signal Input
- DVI · HDMI · DP · SDI
- Operating Temp
- −10°C ~ +45°C
- IP Rating
- IP30
- Maintenance
- Individual panel
We work with architects, interior designers and developers from concept through to final installation, ensuring iLLUSiO aligns with structure, finishes and spatial flow. Tell us about your space and we will design the integrated system around it.
